Hanyang Hot 800cc V-twins water cooled Heavy Motorcycle American Cruiser Motorbike XS800N

Short Description:

Another important indicator of the cruiser, the belt drive is not absent, and the front 19-inch rear 16-inch wheels also follow the traditional characteristics. Other major configurations include FCC slipper clutch, front, and rear dual-channel ABS, TFT color LCD instrumentation, LED light source, inverted front shock absorber, and built-in airbag rear shock absorber.

Capacity:800cc

Engine type: V-type double cylinder

Cooling type: Water-cooling

Drive system: Belt

Fuel tank volume:13L

Maximum speed:150km/h


Product Detail

FAQ

Product Tags

Product Description

04

①Full LED equipped, the headlight design is simple with aesthetic characteristics that people pursue.;
②International famous brand LED lights, brightness and service life are guaranteed
③The design of the turn signal lights are with Chinese elements. It is connected between the top two sides of the shock absorber in the front and the brake lights assembly in the rear.

①The handle switch is a typical American style configuration, it looks rough and solid which is beautiful enough.
② It is worth mentioning that it has a dual flashing function. The way to turn it on is to press the left and right turn signals at the same time.

IMG_8512
IMG_1989

①The front and rear disc brakes are with single disc double-piston floating calipers, equipped aluminum alloy wheels, which shows the retro cruising style, and meet the driving requirements of different road conditions.;
②The dual-channel ABS anti-lock system makes the riding safer and more reliable.
③ The up-right front shock absorber is using a famous brand of YuAn, the damping structure is similar to the internal structure of inverted shock absorber. The performance of compression and rebound is infinitely close to the inverted shock absorber driving sense.

①The wheel hub is equipped with cast aluminum alloy wheels, front tier of 130/70-19; rear tier of 240/45R17.The tires are specially customized for XS800N with cruising style. The manufacturer is CST.

IMG_8533
IMG_2019

①Equipped with Panasonic fans to provide powerful heat dissipation even on congested urban roads.;
② Effectively improve the air flow rate and flow rate flowing through the radiator, enhance the heat dissipation capacity of the radiator and cool the engine and accessories, to minimize engine power loss;
③Equipped a hard plastic water tank cover to effectively protect against the hard objects;

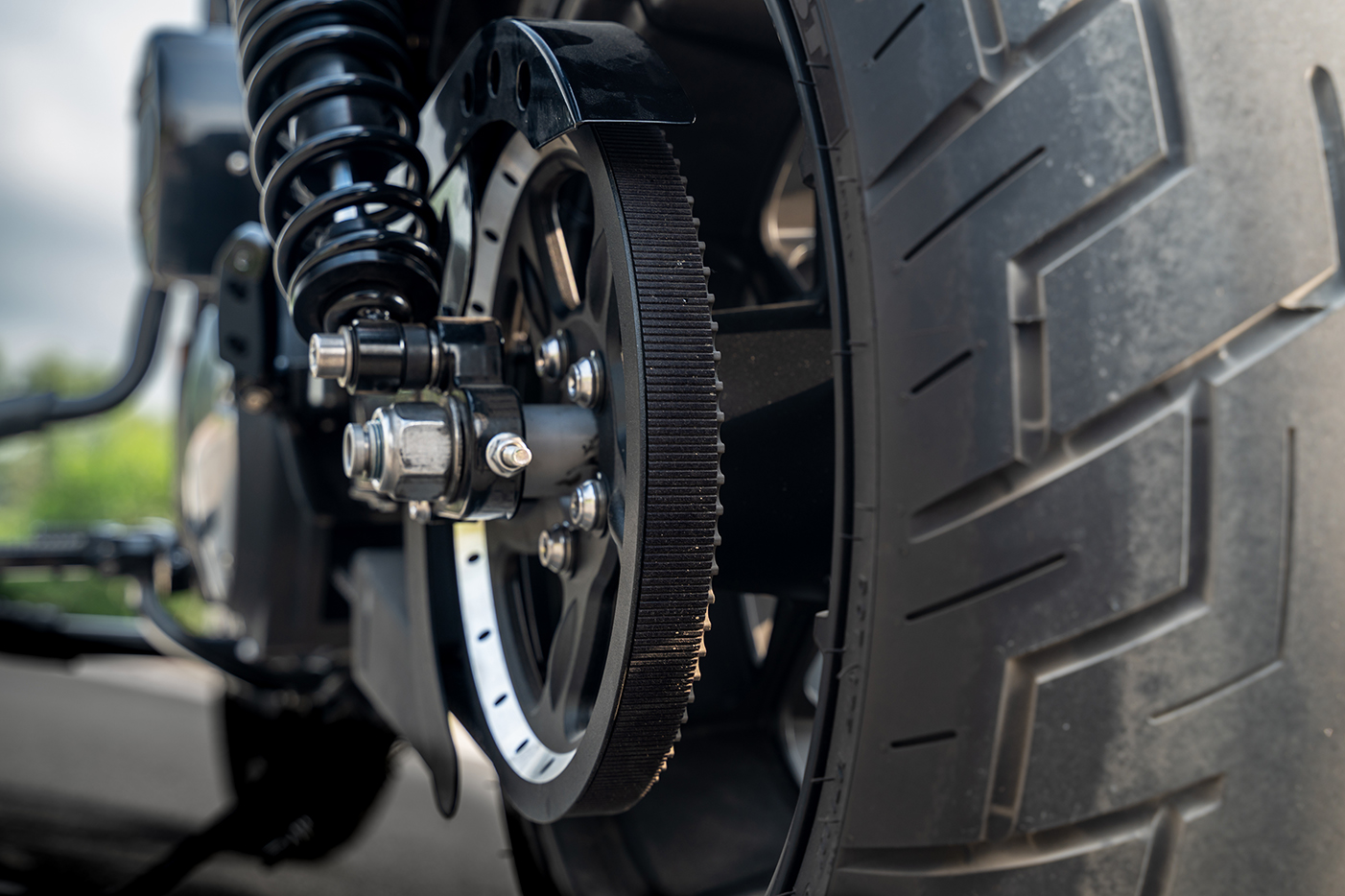

①The belt drive of Gates brand from American is quiet, almost no maintenance is required, increase the comfort of the cruise vehicle.

IMG_2027
IMG_2021

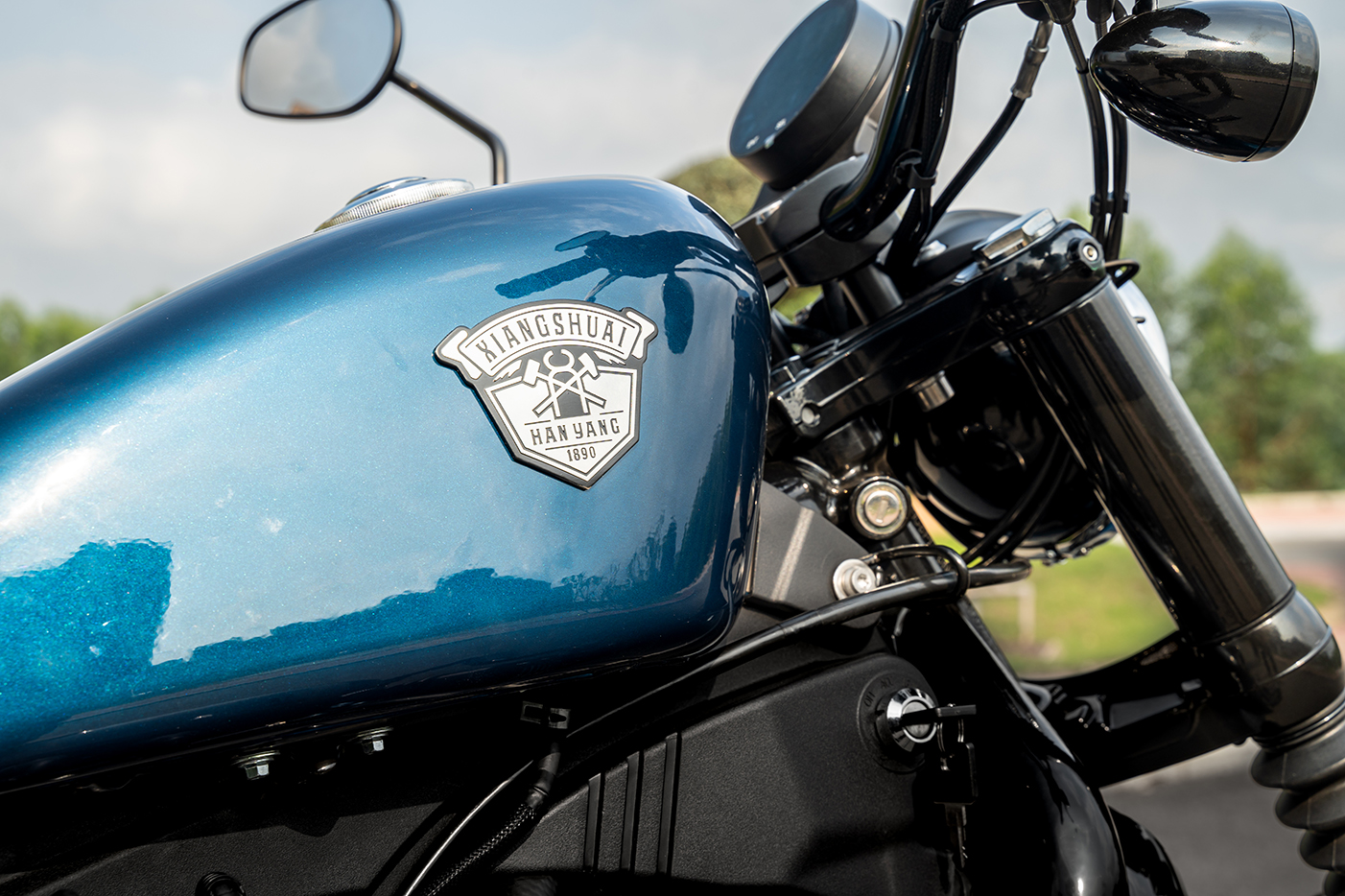

①The shape of the fuel tank is the classic water drop of an American car, the 13L fuel tank;
②The shape is round, full and atmospheric;
③Automotive-level surface curvature requirements and coating technology, the brightness, hue, and saturation of the perfect color;

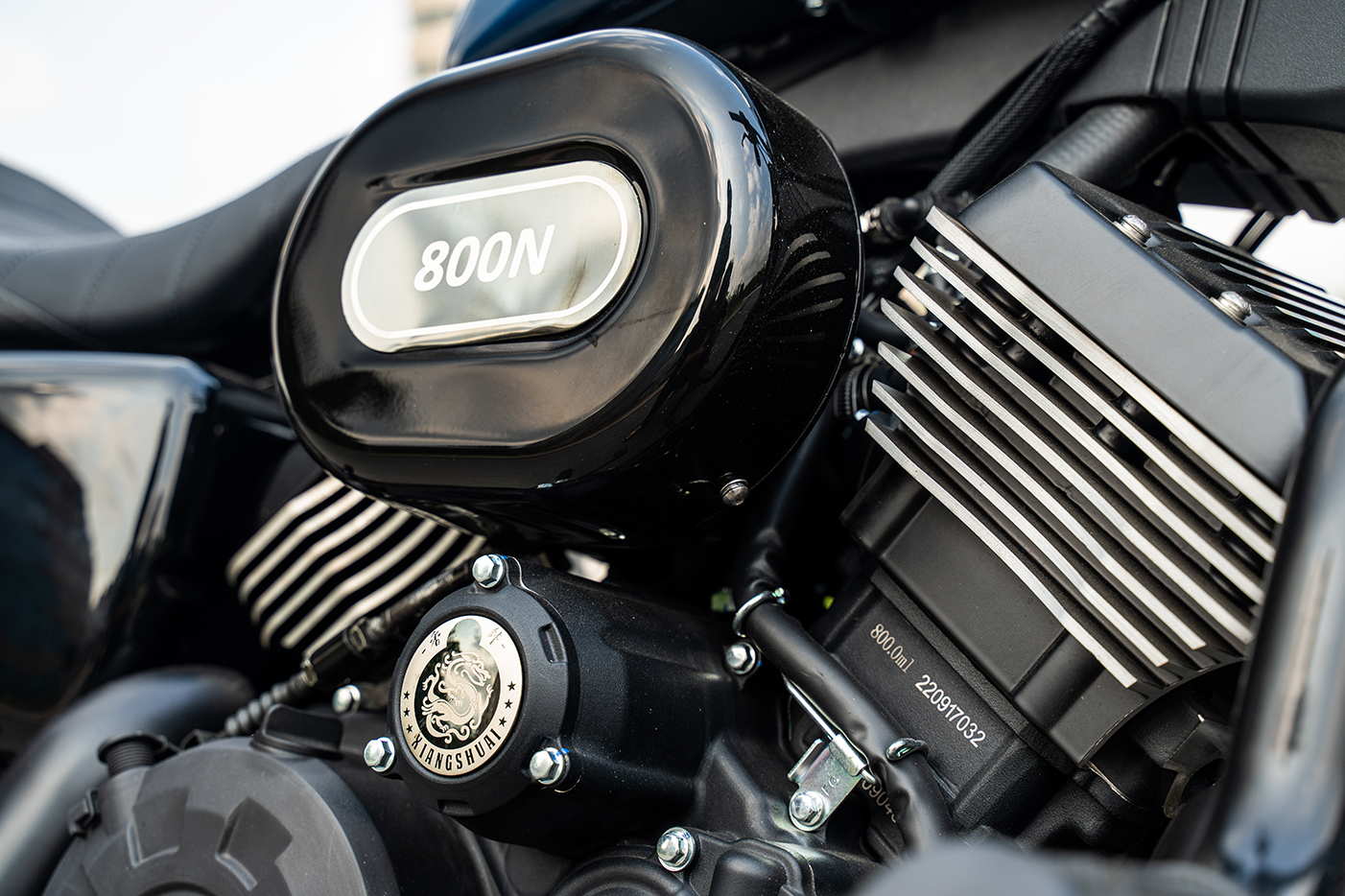

①800CC V-shaped two cylinder eight-valve water-cooled engine, the pistons of the cylinders on both sides hedge off inertia when working, reducing the vibration of the vehicle;
②The well-known domestic brand Delphi EFI system is equipped with imported FCC clutch, the clutch strength is moderate, and the power adjustment is smooth;
③The maximum power is 42kW/6000rpm, and the maximum torque is 68N.m/5000rpm, the horsepower is stronger than that of Harley 883.

IMG_2003
IMG_1992

①The seat is designed to fit the driver's riding, make the riding more confortable;
②The overall shape of the seat is soft, make you have a comfortable riding;
③It is easy to unload, and the two-seats can be quickly switched to the single-seat.

①Yu An well known brand rear shock absorber, can be adjusted precisely, high strength with adjustable spring,
②the 7-stage adjustable resistance has stronger shock absorption performance, can meet different road conditions.

IMG_1995
IMG_1988

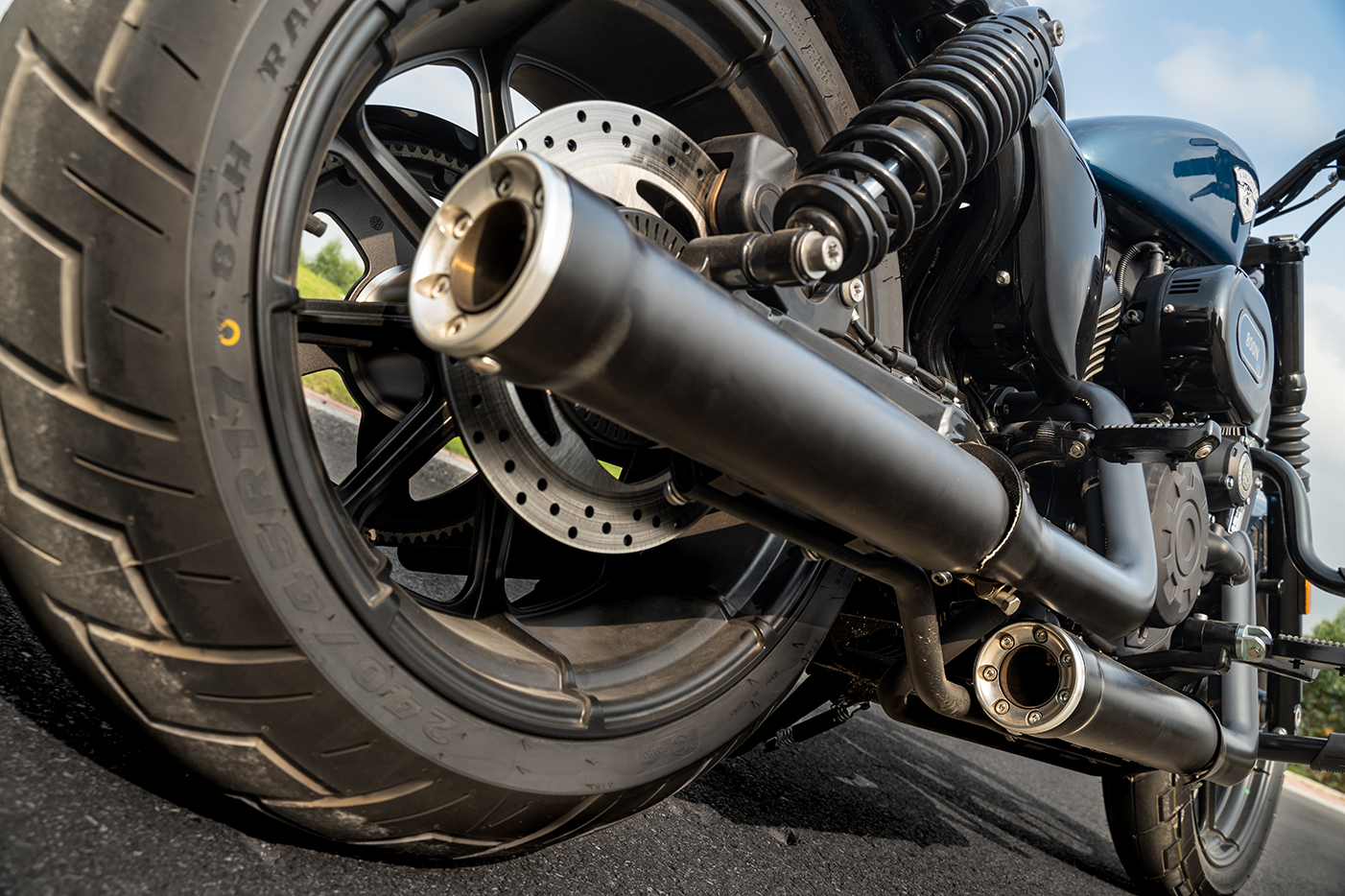

①The muffler is designed as a single side & double outlets snake shape, its voice is thick and loud.

Product Details

Engine
Chassis
Other configuration
Engine
Displacement (ml)  800
Cylinders  and number V-type engine double cylinder
Stroke ignition  8
Valves per cylinder (pcs)  4
Valve structure   overhead camshaft
Compression ratio  10.3:1
Bore x Stroke (mm)  91X61.5
Maximum power (kw/rpm)  42/6000
Maximum torque (N m/rpm) 68/5000
Cooling WATER COOLING
Fuel supply method  EFI
Gear shift  6
Shift Type  FOOT SHIFT
Transmission
Chassis
Length×width×height(mm) 2155X870X1160
Seat height (mm)  695
Ground clearance (mm)  140
Wheelbase (mm)  1510
Total mass (kg)
Curb weight (kg)  254
Fuel tank volume (L)  13
Frame form  Double cradle frame
Maximum speed (km/h)  150
Tire  (front) 130/70-ZR19
Tire  (rear)  240/45-ZR17
Braking system  Front/rear caliper hydraulic disc type with double channel ABS
Brake Technology  ABS
Suspension system Hydraulic damping for shock absorption
Other configuration
Instrument  LCD SCREEN
Lighting  LED
Handle
Other configurations
Battery  12V9Ah

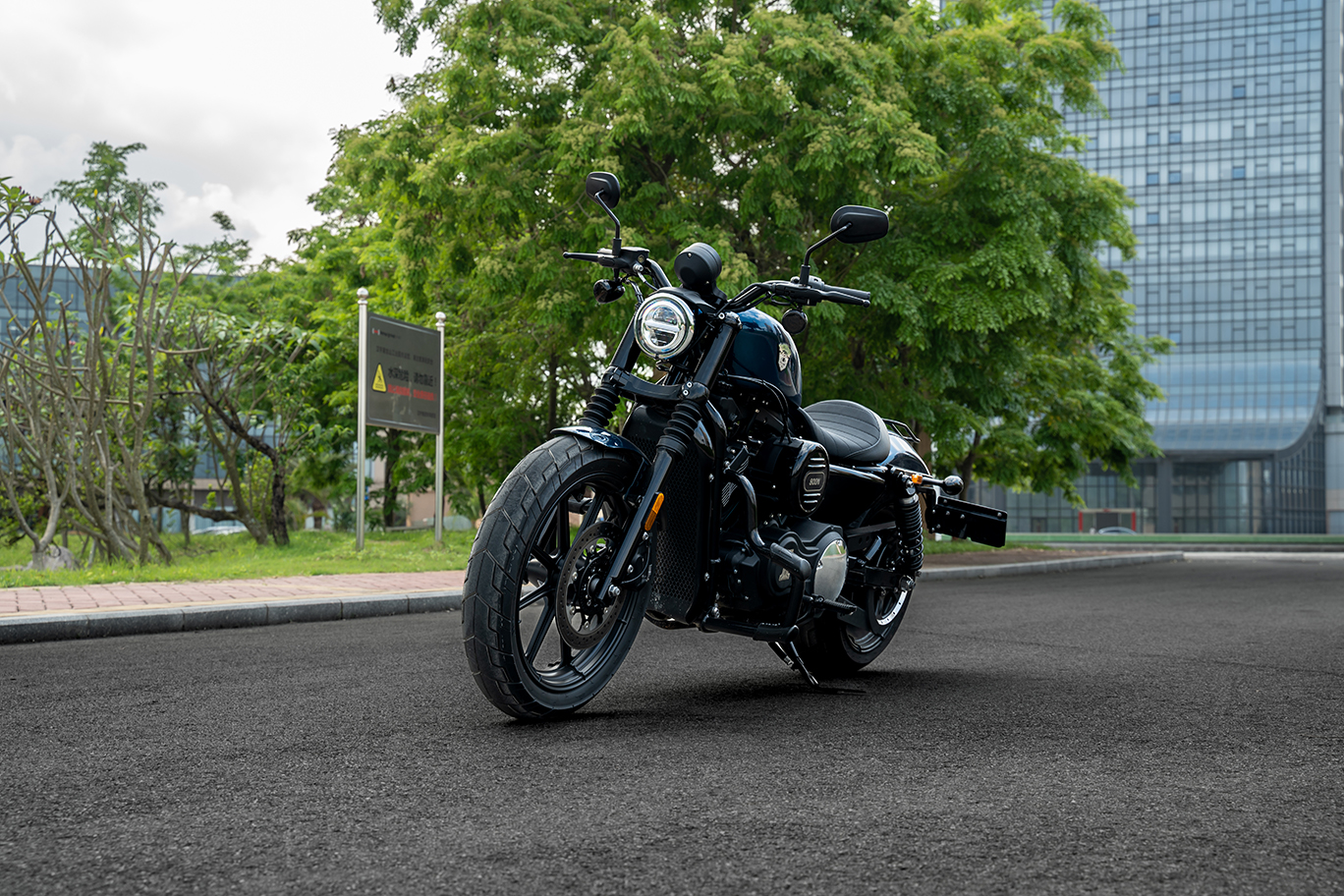

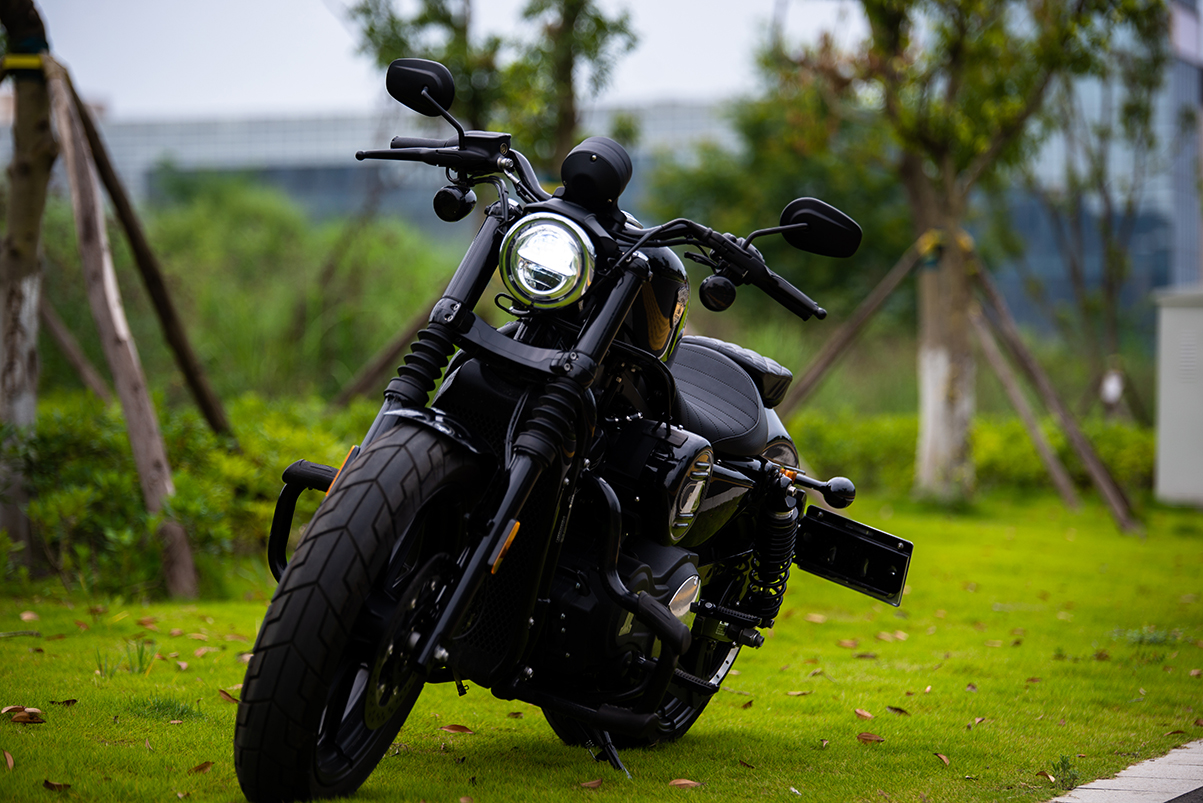

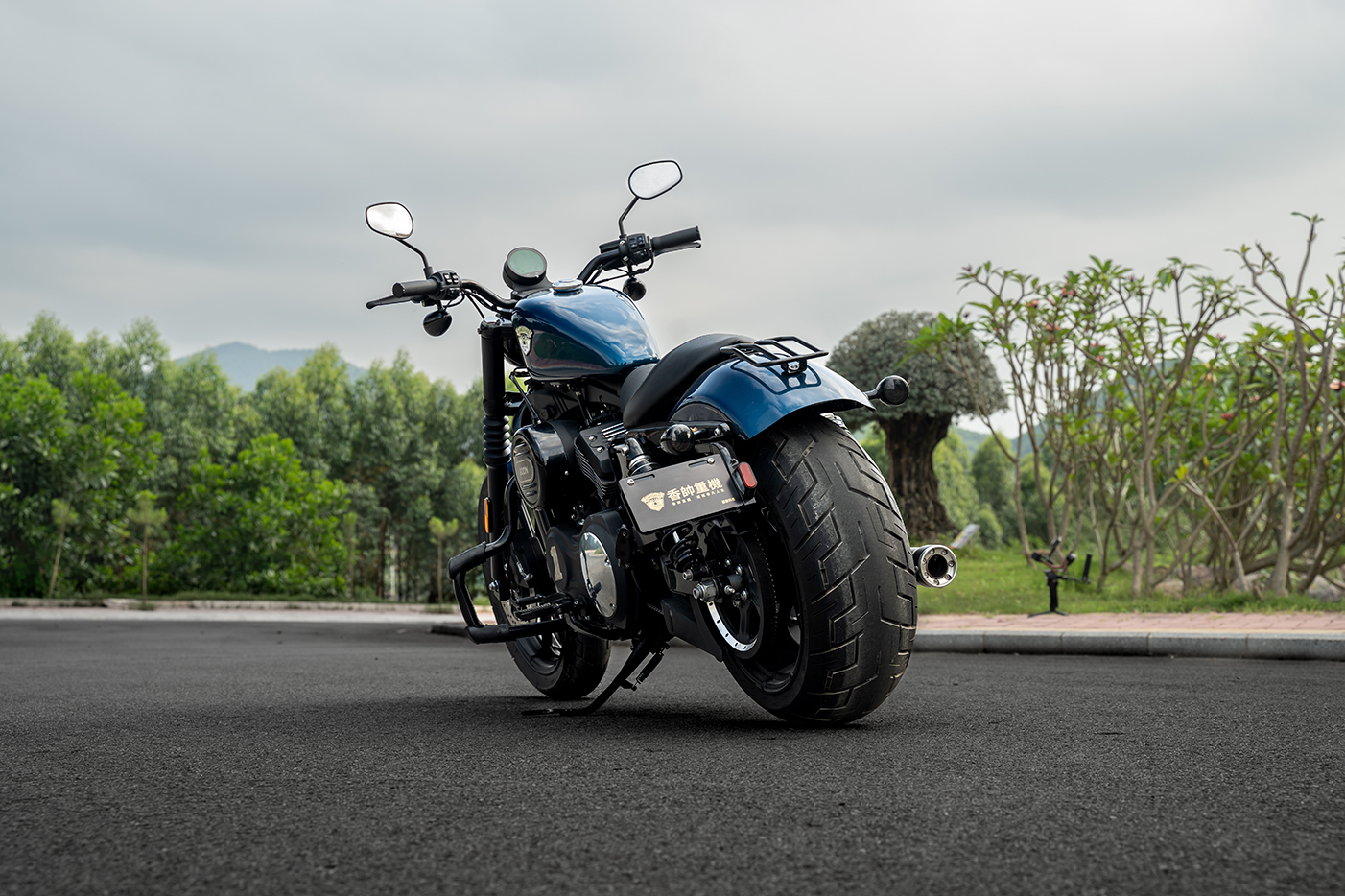

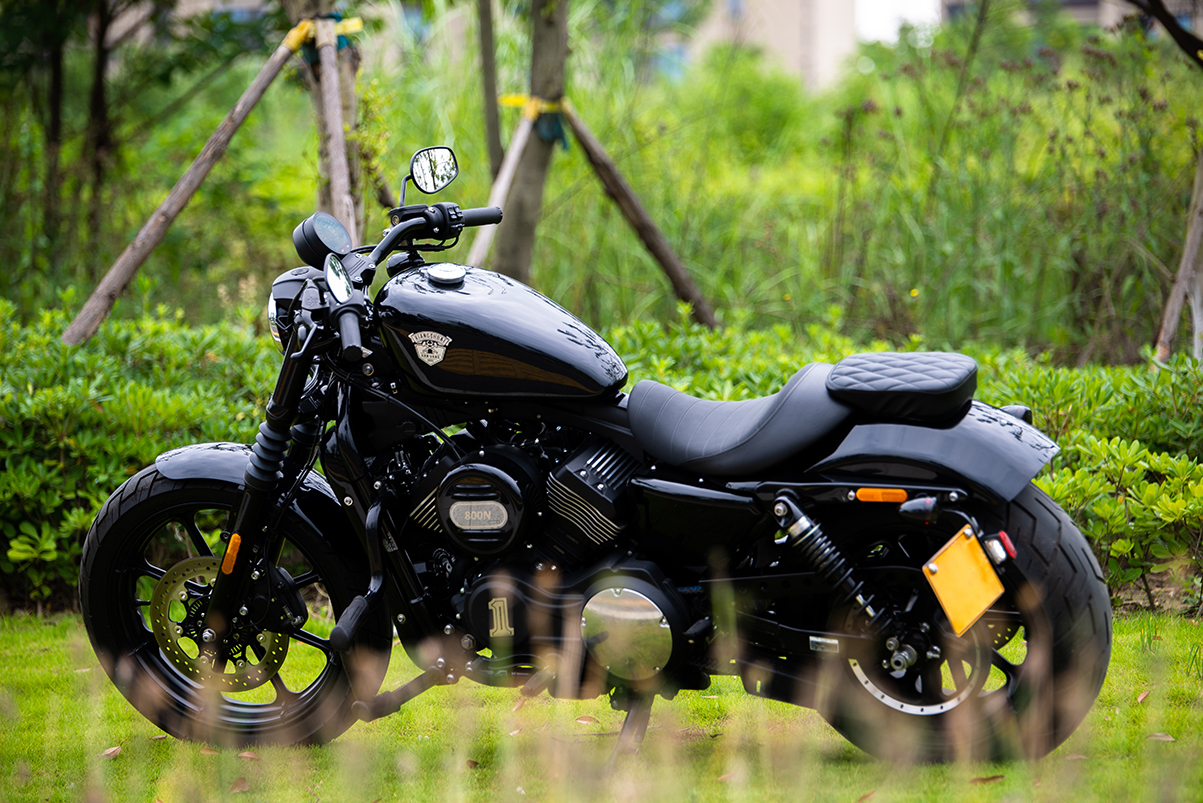

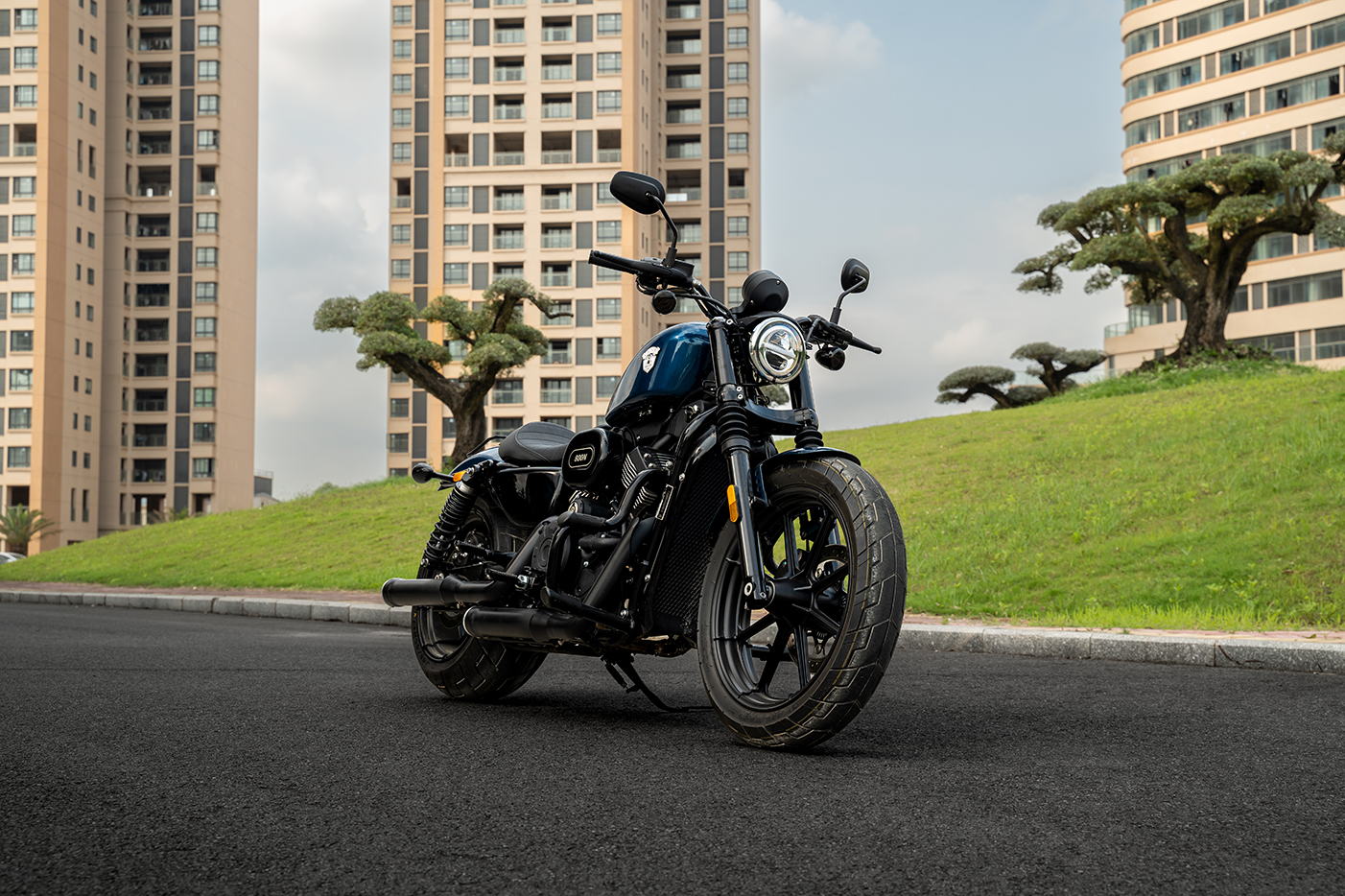

DSC06265 DSC06269 DSC06271 DSC06274 DSC06277 DSC06281 DSC06284 DSC06287 微信图片_20230619115311 微信图片_20230619115324 微信图片_20230619115447 微信图片_20230619115513 DSC06254 DSC06256 DSC06259 DSC06261

Product Display
