XS500 Motorcycle cruiser 500cc Water cooled Motorbike

Short Description:

Displacement: 500cc

Cooling  type : Water  cooling

Engine type:twin  cylinder

kind of drive:Chain

Fuel tank volume :13L

Maximum speed :160  km/h

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency,

Payment: T/T, PayPal

We have own factories in China. Among many trading companies, we are your best choice and your absolutely reliable business partner.

Any inquiries we are happy to reply, pls send your questions and orders.

Noted: We are now looking for wholesalers, if you need one please contact your local agent, thank you.

Product Detail

Product Tags

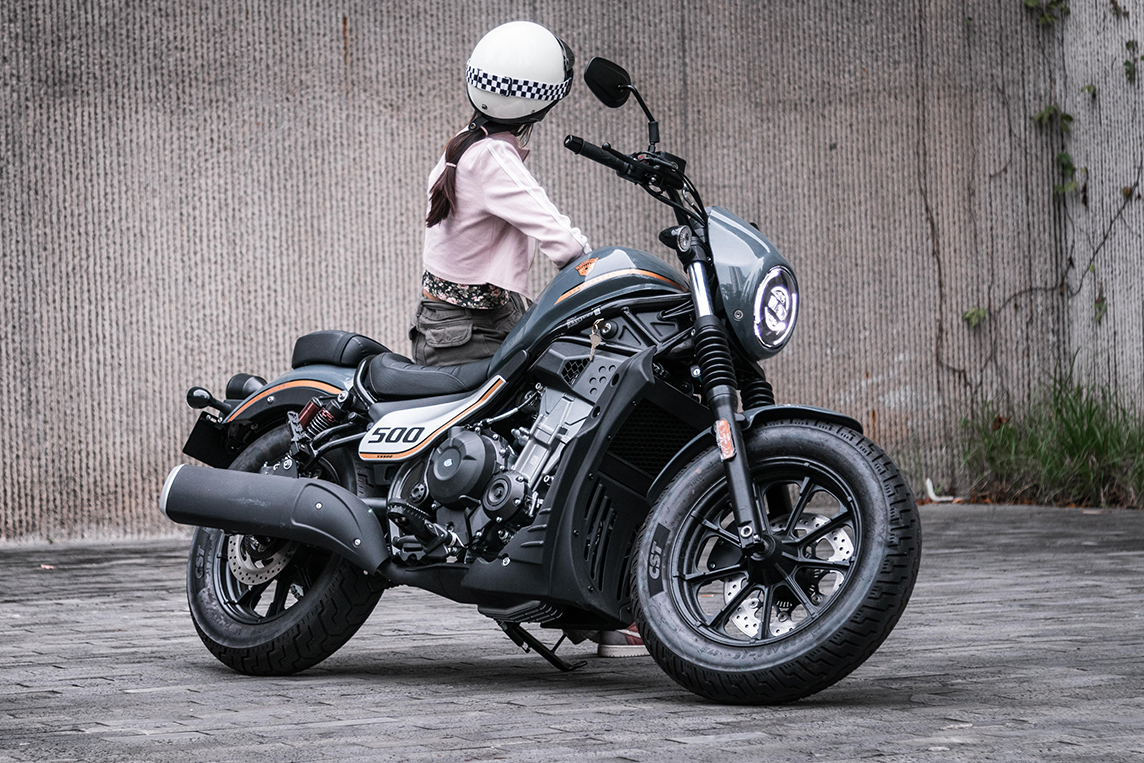

The XS500 frame includes a unique slender body, tubular steel construction on the frame, and a rounded rear end. It is very beautiful even when viewed alone. The aluminum die-cast auxiliary rear frame adopts a bolt-on structure, and the rear fender adopts a textured rolled steel plate, giving the XS500 unlimited customization potential.

All lights use LED light , among which the headlamps are composed of four groups of LED inner lenses, and the highly individual structure brings a unique visual perception.


Instrument Panel


The XS500 instrument panel is a retro circular design and uses a small LCD instrument with a diameter of 100mm. The full LCD screen has also been endowed with richer functions, such as gear display, fuel level display, etc. All are easier for drivers to ride easily.

Tubeless Tyre

Transfer method with chain,more low cost and simple maintenance,wide applicability.
The XS500 with tubeless tyre and uses 130/90-ZR16 front wheels and 150/80-ZR16 rear wheels, showing a heavy and stylish presence. Both front and rear tires are 16 inches, providing more possibilities for customization.



Dual-channel automotive-grade ABS (anti brake systerm) , front and rear dual-channel ABS anti-lock braking system, equipped with opposing four-piston calipers at the same time and
more safe for driving fast at road.




The wheelbase of this moto is 1505mm, the length x width x height is 2213x828x1230mm, the seat height is 730mm, the minimum ground clearance is 180mm, and the fuel tank is 13L.


45mm diameter swingarm. Double suspension, and the rear shock absorber adopts a bold design to enhance the visual impact.




In terms of power, the XS500 is a four-valve water-cooled parallel twin-cylinder engine with a displacement of 471mL. As a cruise model, the XS500 has more torque, with a maximum torque of 40.5 and a maximum power of 31.5kW. The maximum speed is 160KM/H. Bore x stroke is 67 x 66.8(mm).



Product Details

Other configuration
Displacement (ml)  471
Cylinder twince
Stroke ignition  4 stroke
Valves per cylinder (pcs)  4
Valve structure   DOHC
Compression ratio  10.7:1
Bore x Stroke (mm)  67×66.8
Maximum power (kw/rpm)  31.5/8500
Maximum torque (N m/rpm) 40.5/7000
Cooling Water
Fuel supply method  EFI
Start   Electric start


Length×width×height(mm) 2213*828*1230
Seat height (mm)  730
Ground clearance (mm)  180
Wheelbase (mm)  1505
Total mass (kg)  364
Curb weight (kg)  225
Fuel tank volume (L)  13L
Maximum speed (km/h)  160Km/h
Tire  (front) Tubeless 130/90-ZR16
Tire  (rear)  Tubeless 150/90-ZR16


Other configuration
Instrument  LCD
Lighting  LED
Battery  12v9Ah
Anti block ABS

  • Previous:
  • Next:

  • Q: Can I have my own customized design for the product & packaging?
    A: Yes, can OEM as your needs. Just provide your designed artwork for us.
    Q: What’s the payment terms?
    A: 30% T/T deposit, 70% T/T balance payment before shipment.
    Q: How does your factory do regarding quality control?
    A: We have a strict quality control system, and our professional experts will check the appearance and test functions of all our items before shipment.
